The 2007 Edition Home NetworkΒΆ

The 2007 edition of the home network is a small extension to the 2003 edition. I put this in because I just got rid of one of the computers in the old picture.

_images/homenetwork07.png

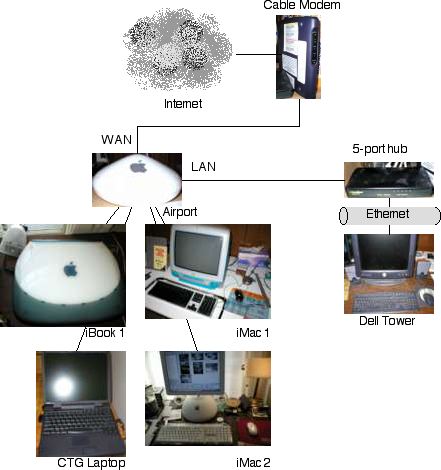

The 2003 edition of the home network is greatly simplified from the previous versions, shown below.

  • No more Localtalk network for old Mac Plus machines and the NEC printer.
  • No more XRouter front-end. The Airport is a router for both wireless and wired networks; all but one of the computers are wireless.
_images/homenetwork03.jpg

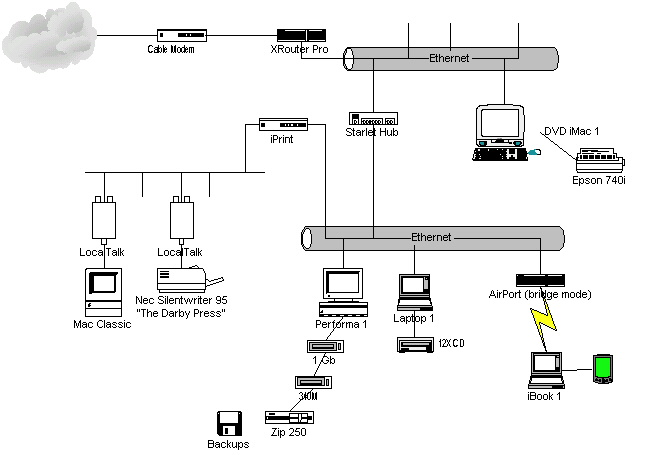

The following map shows the state of the home network at it’s peak of complexity in 2000.

_images/homenetwork00.jpg

This is the goofy little wooden shelf with cable modem, router and airport.

_images/networkhub.jpg
